Product introduction：
In the crushing process of chemical, food and other industries, due to the influence of the original shape of the material, many materials can not complete the whole process of crushing at one time, often through the coarse crushing, fine crushing and screening process. According to this situation, the characteristics of various raw materials and the existing grinding equipment are analyzed comprehensively, and the series of CSJ coarse crusher is carefully developed.
The machine is suitable for a variety of chemical, food and other tough and hard materials, such as rubber, plastic, traditional Chinese medicine raw materials, epoxy resin, sugar and so on. Crushing is the process of using mechanical force to break the cohesion of solid materials and reduce the geometric size of solid materials.
The machine has the advantages of simple structure, small and reasonable, easy operation, low noise, low energy consumption, good crushing effect, uniform particles, etc. It is an ideal equipment for coarse crushing processing.

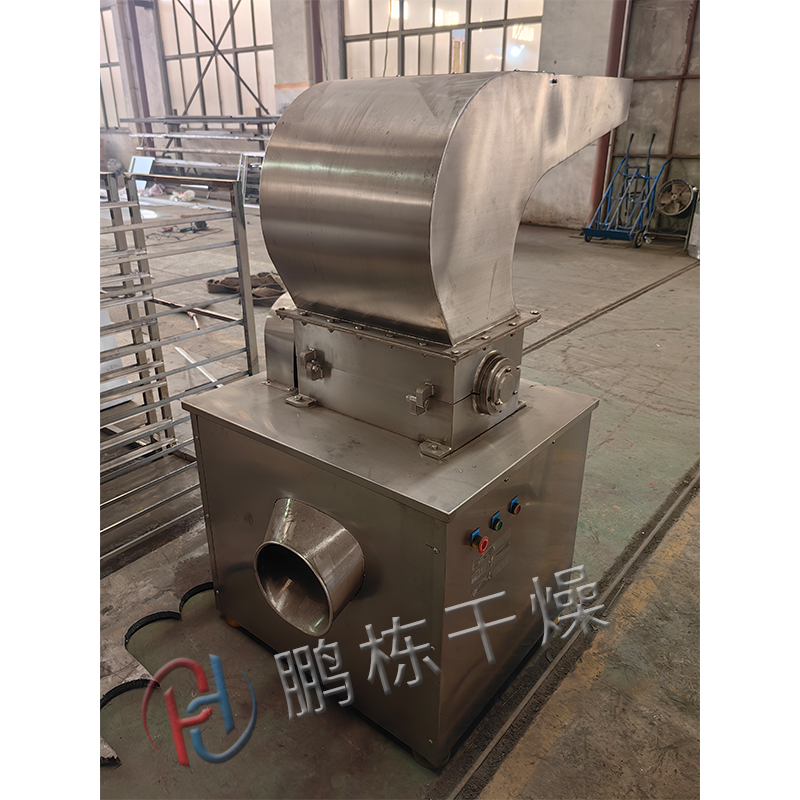

The machine is composed of four parts: frame, motor, feed hopper and crushing mechanism. The material enters the crushing chamber directly through the feed hopper, and achieves the purpose of crushing by the strong shear of the rotating knife and the fixed knife at medium speed. The size of the obtained particles is controlled by adjusting the gap between the moving knife and the fixed knife. Through the control of the screen, the particles that meet the requirements are discharged from the discharge port, and the materials that do not meet the requirements continue to shear and crush in the crushing chamber until they meet the requirements.
Technical parameter：
Model | CSJ-250 | CSJ-500 |
Feed size | ≤ 100 | ≤ 100 |
Discharge size | 0.5~20 | 0.5~20 |
Spindle speed | 940 | 1000 |
power | 4 | 11 |
Yield | 50~300 | 80~800 |
Overall dimension | 860×650×1020 | 1120×1060×1050 |
Working principle：
The material is sent into the crushing chamber by the feed hopper. After the impact of the blade and the knife seat, the rotary knife and the fixed knife are cut and crushed at the same time. Due to the action of the rotating centrifugal force, the material automatically flows out from the exit.
Product characteristics：
The machine is a vertical grinding mechanism, which is not limited by material viscosity, hardness, softness, etc., and can play a better crushing role for a variety of materials.
